Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

Product Categories
Beijing Plink AI Technology Co., Ltd
Contact Now

Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

  • 1
  • 2

Brand Name : PLINK

Model Number : NVIDIA Jetson AGX Xavier 32G

Place of Origin : China

MOQ : 1SET

Price : To be discussed

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1+set+4weeks

Delivery Time : 15-30 work days

Packaging Details : 110*140*50mm

NAME : Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

Keyword : Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

AI Performance : 32 TOPS

HDMI 2.0 : 2x NVDLA Engines

Memory : 32 GB 256-bit LPDDR4x 136.5GB/s

Power : DC +12V

Temperature : -25~+65℃

Single Package Size : 136mm×100mm×20 mm

Weight : 412g

Contact Now

Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

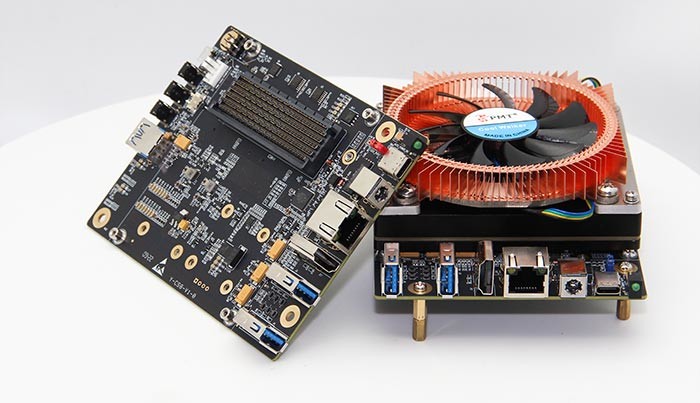

NVIDIA Jetson AGX Xavier (32G ) Y-C9-DEV

NVIDIA Jetson AGX Xavier(32G) + Y-C9 Carrier Board + Cooling FAN

The Y-C9-DEV is for deep lesrning and makes the makers, developers good to creat the autonomous products, it based on NVIDIA Jetson AGX Xavier module, two instances of the NVIDIA Multi-Standard Video Decoder (NVDEC). The video decoder is designed to be extremely power efficient without sacrificing performance and communicates with the memory controller through the video DMA which supports a variety of memory format output options. For low power operations, the video decoder can operate at the lowest possible frequency while maintaining real-time decoding using dynamic frequency scaling techniques.

NVIDIA Jetson AGX Xavier module Technical Specifications

AI Perf

32 TOPS

GPU

512-core NVIDIA Volta architecture GPU with 64 Tensor Cores

CPU

8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

Memory

32GB 256-bitLPDDR4x 136.5GB/s

CSI Camera

Up to 6 cameras
(36 via virtual channels)
16 lanes MIPI CSI-2 | 8 lanes SLVS-EC
D-PHY 1.2 (up to 40 Gbps)
C-PHY 1.1 (up to 62 Gbps)

Storage

32GB eMMC 5.1

USB

3x USB 3.2 Gen2 (10 Gbps)
4x USB 2.0

PCIe

1 x8 + 1 x4 + 1 x2 + 2 x1
(PCIe Gen4, Root Port & Endpoint)

Deep Learning Jetson Nvidia AGX Xavier 32gb Carrier Board Embedded System

USB 3.1 Type-A

3

Micro USB (Debug)

1

USB Type-C

1

MiniPCIe

2

M.2 Key M

1

3.3V TTL

2

Working indicator light

1

Fan control interface

1

Gigabit Ethernet (10/100/1000 BASE-T) RJ45

1

HDMI 2.0

1

Size

136mm×100mm×20 mm

Weight

412g

Power

DC +12V

Temperature

-25~+65℃
