8G Intelligent Jetson Xavier NX Module Development Kit

Brand Name : NVIDIA

Model Number : (900-83668-0000-000)

Place of Origin : USA

MOQ : 1PCS

Delivery Time : 15-30 work days

Price : USD450-USD480\PCS

Payment Terms : L/C, D/A, D/P, T/T

NAME : 8G Intelligent Jetson Xavier NX Module Development Kit

Keyword : 8G Intelligent Jetson Xavier NX Module Development Kit

AI Performance : 21 TOPS

GPU : 384-core NVIDIA Volta™ GPU with 48 Tensor Cores

CPU : 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3

Storage : 16 GB eMMC 5.1

Memory : 8 GB 128-bit LPDDR4x 59.7GB/s

Power : 10W | 15W | 20W

Single package size : 69.6mm x 45mm

Display : 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

Contact Now

8G Intelligent Jetson Xavier NX Module Development Kit

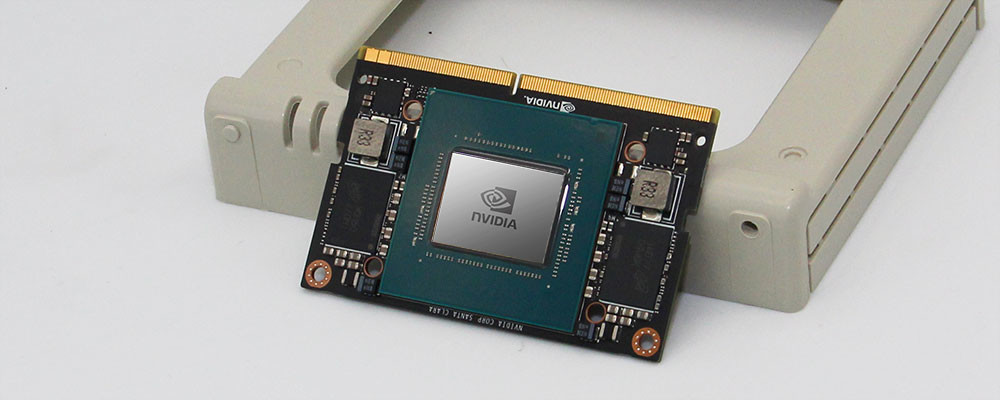

NVIDIA Jetson Xavier NX Module
AI Perf: 21 TOPS (INT8)
GPU: 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3
Memory: 8 GB 128-bit LPDDR4x 59.7GB/s
Storage: 16 GB eMMC 5.1

​Module Size: 69.6 mm x 45 mm | 260 pin SO-DIMM Connector

NVIDIA Jetson Xavier NX brings AI supercomputer performance to the edge in a compact system-on-module (SOM) that’s smaller than a credit card. Jetson Xavier NX is built around a low-power version of the NVIDIA Xavier SoC, combining the NVIDIA VoltaTM GPU architecture with 64-bit operating capability, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.

Operating Requirements

Temperature Range (TJ)*: -25°C – 90°C | Supported Power Modes: 10W – 15W | Power Input: 5V

NVIDIA Jetson Xavier NX 8G module

AI Performance 21 TOPS
GPU 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
6MB L2 + 4MB L3
Memory 8 GB 128-bit LPDDR4x
59.7GB/s
Storage 16 GB eMMC 5.1
PCIe 1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*
Power 10W | 15W | 20W
CSI Camera Up to 6 cameras (24 via virtual channels)
14 lanes (3x4 or 6x2 or 3x4 + 1x2 or 5x2 + 1x4) MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
DL Accelerator 2x NVDLA Engines
Networking 10/100/1000 BASE-T Ethernet
Video Encode 2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)
Video Decode 2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
Display 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
Mechanical 69.6mm x 45mm
260-pin SO-DIMM connector

* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features

Jetson Xavier NX 16GB Jetson Xavier NX 8GB
Memory

16 GB 128-bit LPDDR4x
59.7GB/s

8 GB 128-bit LPDDR4x
59.7GB/s

8G Intelligent Jetson Xavier NX Module Development Kit


Product Tags:

jetson xavier kit GPU



8G jetson xavier kit



Jetson nx gpu


8G Intelligent Jetson Xavier NX Module Development Kit Manufactures

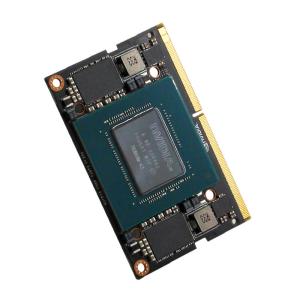

8G Intelligent Jetson Xavier NX Module Development Kit Images
