PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core

Name: PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core
Brand: PLINK
Price: 1 USD

PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core Manufactures

Brand Name : PLINK

Model Number : Y-C8-DEV-Xavier

Place of Origin : China

MOQ : 1

Price : To be discussed

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1+set+4weeks

Delivery Time : 15-30 work days

Packaging Details : 195mm × 180mm × 50mm

NAME : PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core

Keyword : PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core

Memory : 32GB 256-bit LPDDR4 x 136.5GB/s

USB Micro-B : *1

USB Type-A : *1

Single Package Size : 188mm × 170mm × 43mm

Input Power : DC +12V

Temperature Range : -25℃ to 65℃

GPIO(3.3V) *1 : *1

RS 232 : *2

Networking : 1 x 10/100/1000 Ethernet/RJ45

Contact Now

PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core

NVIDIA AGX Developer Kit

Y-C8-DEV(Jetson AGX Xavier 32G domestic developer kit)

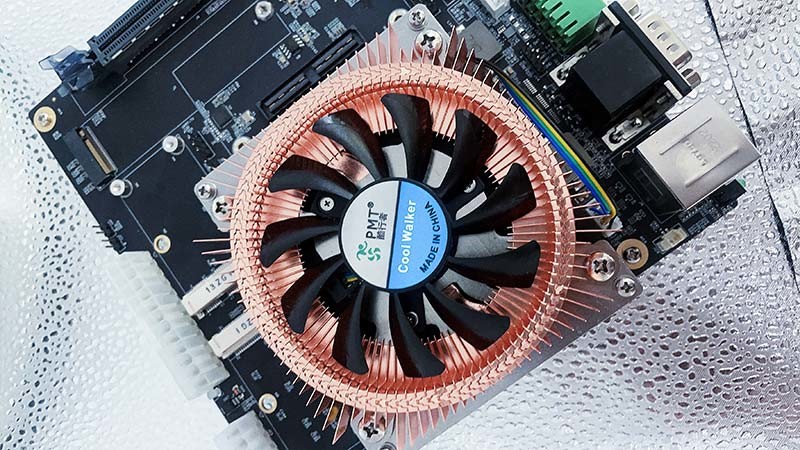

Y-C8 Carrier Board + NVIDIA Jetson AGX Xavier Module (32G) + Cooling FAN

The Y-C8-DEV-Xavier 32G Nvidia Agx Developer Kit is seld-developer kit by PLINK-AI,and it based on NVIDIA Jetson AGX Xavier module (32G), the CPU is 8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3, and four GPIO(3.3V), one SPI(3.3V), two I2C(3.3V) , two RS 232, 1 Debug(UART), two CAN (with on-board transceiver), one 10/100/1000 Ethernet/RJ45. It is for industrial such as autonomous, VR, drones, robotics and logistics.

NVIDIA Jetson AGX Xavier Module (32G) Technical Specifications

AI Perf	32 TOPS
CPU	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU	512-core NVIDIA Volta architecture GPU with 64 Tensor Cores
Memory	32GB 256-bitLPDDR4x 136.5GB/s
Storage	32GB eMMC 5.1
USB	3x USB 3.2 Gen2 (10 Gbps) 4x USB 2.0
CSI Camera	Up to 6 cameras (36 via virtual channels) 16 lanes MIPI CSI-2 \| 8 lanes SLVS-EC D-PHY 1.2 (up to 40 Gbps) C-PHY 1.1 (up to 62 Gbps)
Display	3 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

PCIE Industrial Embedded Jetson Xavier Agx Dev Kit Carrier Board 32G 8 Core

CPU	8-core NVIDIA Carmel Arm® v8.2 64-bit CPU 8MB L2 + 4MB L3
GPU	512-core NVIDIA Volta GPU with 64 Tensor Cores
USB Micro-B	1 x Type B (OTG)
USB Type-A	1 x USB 3.1
GPIO(3.3V)	1
SPI(3.3V)	1
I2C(3.3V)	2
RS 232	2
Debug(UART)	1
CAN (with on-board transceiver)	2
Networking	1 x 10/100/1000 Ethernet/RJ45
Power Supply	DC +12V
Temperature	-25~+65°C
Size	188mm × 170mm × 43mm
