Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE

  • 1
  • 2

Brand Name : Leadtek

Model Number : WinFast GS2040T

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : To be discussed

Delivery Time : 30-45 work days

NAME : Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering

Keyword : Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering

CPU : Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W Up to 40 Cores

Memory Capacity : 16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM Supports Intel® Optane™ DCPMM

Memory Type : 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM

Chipset : Intel® C621A chipset

SATA : SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Controllers : Dual Port 10GbE from Intel X710

Height : 3.46"(88mm)

Width : 30.18"(766.8mm)

Weight : Net Weight: 39.5 lbs (17.9 kg) Gross Weight: 54 lbs (24.5 kg)

Contact Now

Leadtek WinFast GS2040T PC Workstation Server For AI Deep Learning 3D Rendering

NVIDIA Ampere Data Center

Deep Learning Workstation

WinFast GS2040T

WinFast GS2040T features a powerful GPU architecture that supports up to 6 double-width passive GPUs (NVIDIA® A100/A40/A30/A10) or 4 double-width active GPUs(NVIDIA® RTX A6000/A5000), enable scaling of performance in order to meet the demands of AI, high-performance computing, and 3D rendering applications.

Optimized for AI/Deep Learning GPU peering

Optimized for NVIDIA GRID

Supports up to 6 double-wide GPU cards

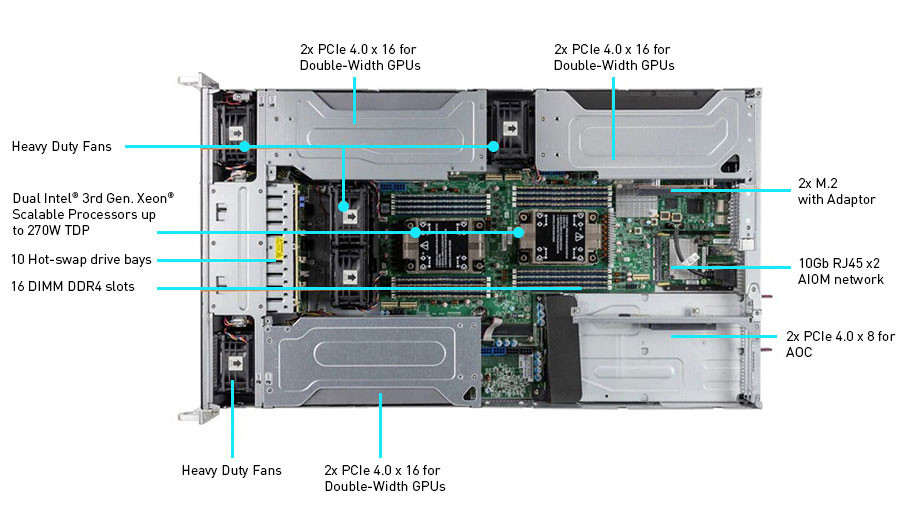

Key Features

Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM,
Supports Intel® Optane™ DCPMM

6 PCI-E 4.0 x16 slots (FHFL),
2 PCI-E 4.0 x8 slot

Support up to 6 pcs of Double-width GPUs

Dual 10GBase-T LAN ports

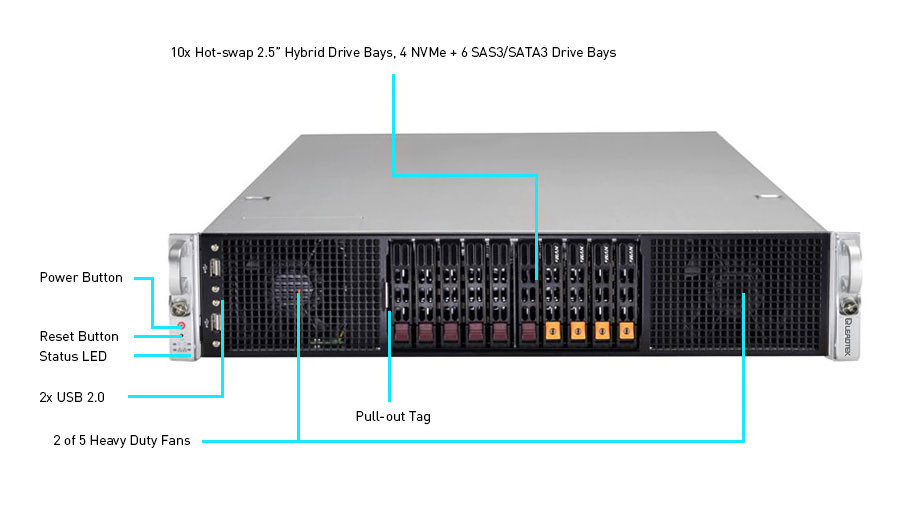

10x 2.5" Hot-swap SATA/SAS drive bays, up to 6x 2.5" NVMe

5x 8cm heavy duty fans with optimal fan speed control

2600W (1+1) Redundant Power Supplies Titanium Level (96%)

WinFast GS2040T Specifications

Processor

CPU

Dual Socket P+ (LGA-4189)

3rd Gen Intel® Xeon® Scalable processors

Support CPU TDP 270W

Up to 40 Cores

System Memory

Memory Capacity 16 DIMM slots
Up to 4TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset Intel® C621A chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers Dual Port 10GbE from Intel X710

Input/Output

SATA 8 SATA3 (6Gbps) ports
LAN 2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports (rear)
2 USB 2.0 ports (front)
Video 1 VGA Connector

Dimensions and Weight

Height 3.46"(88mm)
Width 17.35"(440.7mm)
Depth 30.18"(766.8mm)
Weight Net Weight: 39.5 lbs (17.9 kg)
Gross Weight: 54 lbs (24.5 kg)

Form Factor 2U Rackmountable with Rail kit

Expansion Slots

PCI-Express 6 PCI-E 4.0 x16 slots
2 PCI-E 4.0 x8 slots

System Cooling

Fans 5x 8cm Heavy duty fans with optimal fan speed control

Power Supply

Power 2600W 1U Redundant Power Supplies with PMBus
AC Input 2600W: 200-240Vac / 15A Max
DC Input 2600W: 200-240Vdc For CQC Only/ 15A Max / 50-60Hz
+12V Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)

Operating Environment

RoHS RoHS Compliant
Environmental Spec.

Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Leadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbELeadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbELeadtek WinFast GS2040T Nvidia GPU Server Dual Port 10GbE
