PLINK Jetson Nano SBC Embedded System Nvidia Machine Learning Kit 4G

Brand Name : PLINK

Model Number : NANO

Place of Origin : China

MOQ : 1

Price : USD320-USD350 \SET

Payment Terms : D/A, D/P, T/T

Supply Ability : 1+set+4weeks

Delivery Time : 15-30 work days

Packaging Details : 35X28X24cm

NAME : PLINK Jetson Nano SBC Embedded System Nvidia Machine Learning Kit 4G

Keyword : PLINK Jetson Nano SBC Embedded System Nvidia Machine Learning Kit 4G

Power adapter : DC +12V 5A

Working temperature : -25~+80℃

USB3.1 Type-A : *1

Micro USB : *1

RJ45 : *1

HDMI : *1

micro SD : *1

SIM : *1

MiniPCIe : *2

Board size : 120mm×80mm×35mm

Contact Now

PLINK Jetson Nano SBC Embedded System Nvidia Machine Learning Kit 4G

PLINK Embedded Linux SBC Jetson Nano Embedded Development Kit

NVIDIA GPU Development Kit Y-C6-DEV-Nano

Y-C6-DEV-Nano is an embedded NVIDIA Jetson developer kit with the Jetson Nano module. the temperature is -25~+80°C, Support the official system without changing the kernel, and the power onself start, the embedded system for industrial machine leaning.

NVIDIA Jetson Nano Module, delivers 472 GFLOPs for taking on modern AI algorithms. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously, making it ideal for applications ranging from NVRs to intelligent gateways. and high-performance computing at just 5W-10W.

NVIDIA Jetson Nano Module Technical Specifications

GPU
NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores
0.5 TFLOPs (FP16)

CPU

Quad-core ARM® Cortex®-A57 MPCore processor

Memory
4 GB 64-bit LPDDR4
1600MHz - 25.6 GB/s

Storage

16 GB eMMC 5.1 Flash

CSI Camera

12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps)

Display

HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous

UPYH

1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0

Size

69.6 mm x 45 mm


PLINK Jetson Nano SBC Embedded System Nvidia Machine Learning Kit 4GPLINK Jetson Nano SBC Embedded System Nvidia Machine Learning Kit 4G

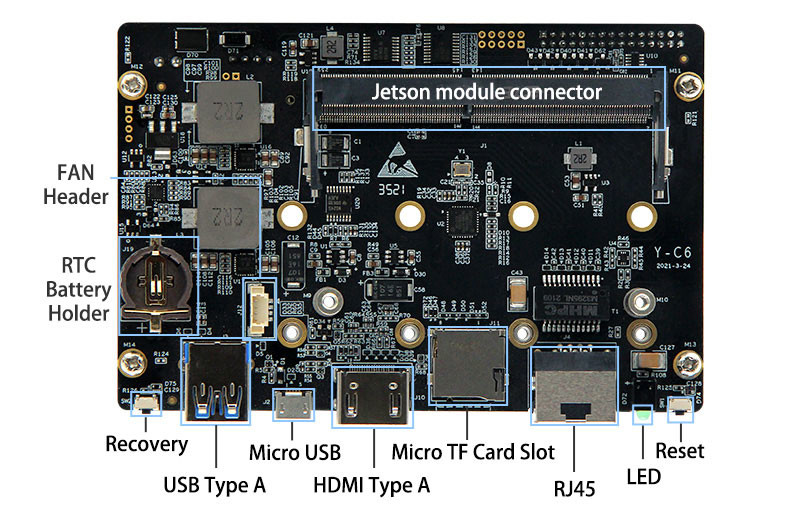

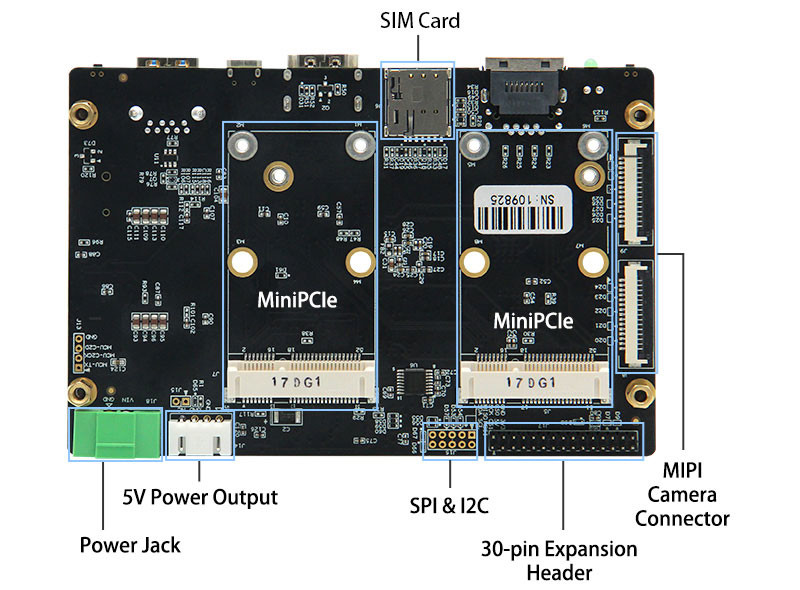

NVIDIA Machine Learning Kit Product Specifications

Support native system

Anti falling off interface design

Temperature: -25~+80°C

Size: 120mm*80mm*35mm

Adapter: AC to DC /220V to +12V 5A

USB 3.1 Type-A

1

Micro USB

1

CR1220 RTC Battery

1

MiniPCIe

2

RJ45

1

micro SD

1

Nano SIM

1

HDMI 2.0

1

2 Lane MIPI

2

CAN

1

30-pin2.0mm Multifunctional interface design
(GPIO,I2C,SPI,USB,RS-232)

1

3.3V Debug(UART)

1

GPIO(3.3V)

3

SPI(3.3V)

1

GPO(3.3V)

1

I2C(3.3V)

2

RS-232

2
